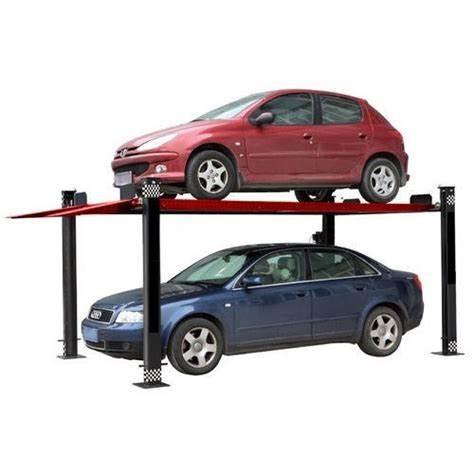

Four Columns Hydraulic Parking Lift 2 Level 4 Post Car Stacker

Four Post 2-level Parking Lift

Description

Home use stereo garage is a kind of mini mechanical parking system. It is different from the public stereo parking lot, the main object is private villas or private independent parking space.

• According to the driving mode can be divided into hydraulic drive type and motor drive type.
• According to the number of layers, it can be divided into 2 layers, 3 layers and 4 layers.
• According to the number of columns can be divided into 2 columns, 4 columns.
• According to the location can be divided into ground type and pit type.

Four Post 2-level Parking Lift can be used for family, apartments, hotels and other places; it can be designed based on site dimensions; 1 car space will park two cars to save more spaces; it can be installed both inside room and outside; For family use, it can provide 220V power; it can be used both for parking and repairing cars; Special-made for SUV.

Technical Parameters

Characteristics

• Hydraulic driven, steel rope lifting system.
• Single stage dual-cylinder lifting.
• High polymer polyethylene slide blocks, wear-resistance.
• Platform runway & ramps made of diamond steel plates.
• Movable galvanized steel plates in the middle.
• Anti-falling mechanical locks in four posts at different heights to ensure safety.
• Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.

Advantages

• Hydraulic drive, steel rope lift, hydraulic system makes the system very low noise and steady working;
• Single unlocked by manual or four sides unlocked automatically with anti-fall devices; the anti-fall blocks installed in the columns will prevent the car platform to fall informally to insure safety of the car;
• Self-lubrication bearing to guarantee the safety at any height;
• Slippery runways and the traction plate for convenient use; the distance between two runways plates are fixed, there is movable plate to receive oil in the middle;
• Appearance with high quality painting, green environment protection without lead, beautiful color, anti-rust painting for long time use;
• This park lift is convenient and reliable, easy operation, quick installation, simple installation at site, no welding, no cutting, low requirements of land area; and it is movable, easy re-installation to adapt all sites;
• Lift weight can reach 3mt for double cars parking;
• Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated

Main Structure

• Steel structure
• Car Pallet
• Electrical system
• Hydraulic drive system or motor drive system
• Lifting system
• Drive system
• Safe-guard system

Project case

family hydraulic parking lift

four columns hydraulic parking lift

2 level 4 post car stacker
