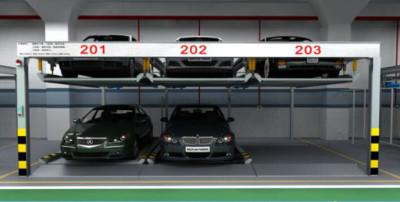

Underground Automated Smart Puzzle Car Parking System Two Levels

Brand Name : ChangYue

Model Number : PSH

Certification : CE

Place of Origin : China

MOQ : 5 piece

Price : to be negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 Unit per month

Delivery Time : 30-60 days

Packaging Details : Standard export packing

Type : PSH2

Material : Steel

Dive mode : Motor drive+chain

Car size (LxWxH) : 5000*1850*2050(SUV)/1550(sedan)mm

Loading Capacity : 2000-2500kg (According to user's demand)

Motor power : 2.2kW

Lifting speed : 4-5m/min

Sliding motor power : 0.2kW

Sliding speed : 8-9m/min

Operation Mode : Smart IC Card/ Manual Buttons

Power supply : 380V/50HZ 3 Phase 5 wires (can do according to user's demand)

Safeguard devices : Whole protection and anti-fall frame

Malfunction indication : Fault diagnosis by computer, liquid crystal display

Platform Treatment : Galvanized wave plate

Parts appearance treatment : Zinc spray and paint or Hot dipped galvanized (Optional)

Certificate : CE & ISO

HS Code : 842890200

Guarantee Term : 12 months for eletrical key parts, 5 years stucture for free

Workig noise : <65Db

Color : Red, Blue, Grey, etc. (Customized according to user demand )

Contact Now

2-level Lift-sliding Mechanical Parking System

The 2-level Lift-sliding Mechanical Parking System is designed with 2 levels and multi-bays. There is an empty car space for exchanging space for other cars. The bottom level cars can move horizontally, while the top level can move only vertically. When the car loading pallet reaches the ground, the car can be driven in or out easily.

Product features

Take full use of land to raise more parking spaces.


Motor driven and steel rope lifting system.

Simple structure, high safety, no front posts to facilitate the entry of the car on platform.

Dependent & space saving with 2 vertical levels.

Back cross bars connected to the back posts to carry the load on platforms.

Working principle: upper platforms can only move vertically while lower platforms can only slide horizontally.

PLC automatic control system. Push button, touch screen and IC for convenient parking and retrieving process.

Safety hook device to prevent falling, collision and overload.

Photo electric sensors to check and stop the unit when cars parked improperly or when persons cross in by accident.

Emergency stop push button mounted on operation panel as well. Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated



Main Structure

  • Steel structure
  • Car Pallet
  • Lifting system
  • Sliding system
  • Hydraulic system
  • PLC control system
  • Safe-guard system


Application

Residential Area, Basement Parking Lot, School, Hotel, Office Buildings, etc.


Other Information

Excluded following works or activities on the above cost:
- Foundation civil works.
- Electric wiring works to control panels.
- Installation.
- Fire Fighting facilities, if required.
- Any other special painting, if required.
- Any duty of approvals or permissions for installation, if required.
- Maintenance service.
Sample drawings
Underground Automated Smart Puzzle Car Parking System Two Levels

FAQ

1. What trade term you can accept?
---FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your port name).
2. What payment term can you accept?
---30%TT in advance, and 70%TT before shipping.
3. How about the loading information and HS Code?
---The HS code is 84289020
---15-16 car spaces can be loaded into 1x40'GP container.
4. How about the lead time?
---30-45 days (According to order quantity).
5. Can you provide OEM service?
---Yes, we can provide OEM service according to the requirement of the client.
6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients.
7. Do you provide training services?
---Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;
8. How about the installation?
---This model of product is relatively simple structure, usually we send installation manual to the client, and they can install it themselves.
---We can also send 1-2 engineers to your country to guide the installation, commissioning, training your staff.
9. What is warranty term?
---12 months for electrical parts, 5 years for mechanical structure.
10. What are the certificates?
---ISO9001 & CE.
11. Can you add the automatic simple safe door at ground level?
---Yes, we can add, it is automatic up and down moment, its system can be linkage with puzzle system.

Underground Automated Smart Puzzle Car Parking System Two Levels
